EFNOTE 7

The Power of Full Scale

Electronic Drums EFNOTE 7

Snare drum stand and cymbal stands are optional.

Hi-hat stand and kick pedal are not included.

EFNOTE 7 : The Power of Full Scale

Pure Drums, Pure Sounds

  • Brand new playing experience with full scale shells/cymbals
  • Reproduces raw drum sounds and ambient perfectly
  • 360° flat sensing with multi-sensor technology
  • Player centric design

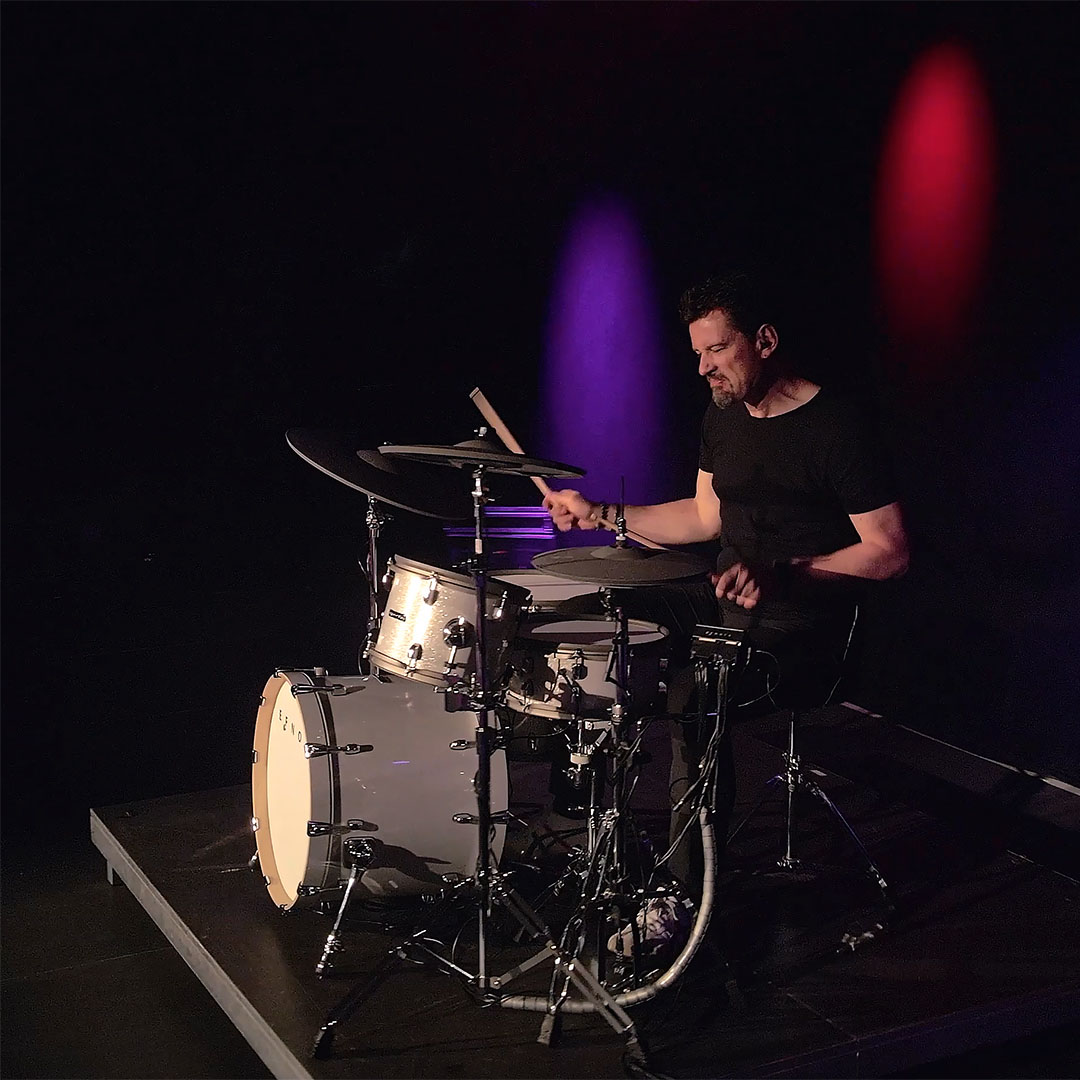

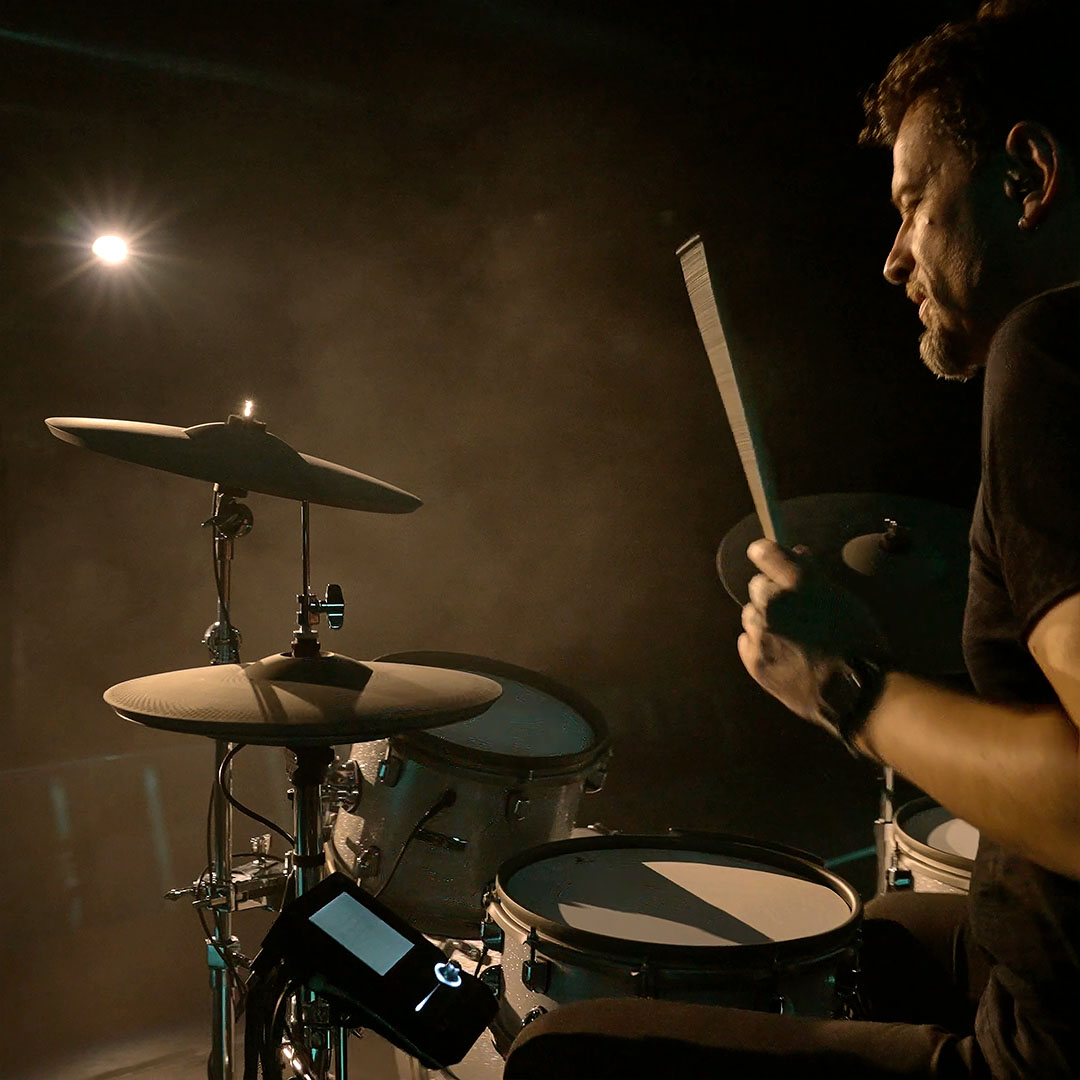

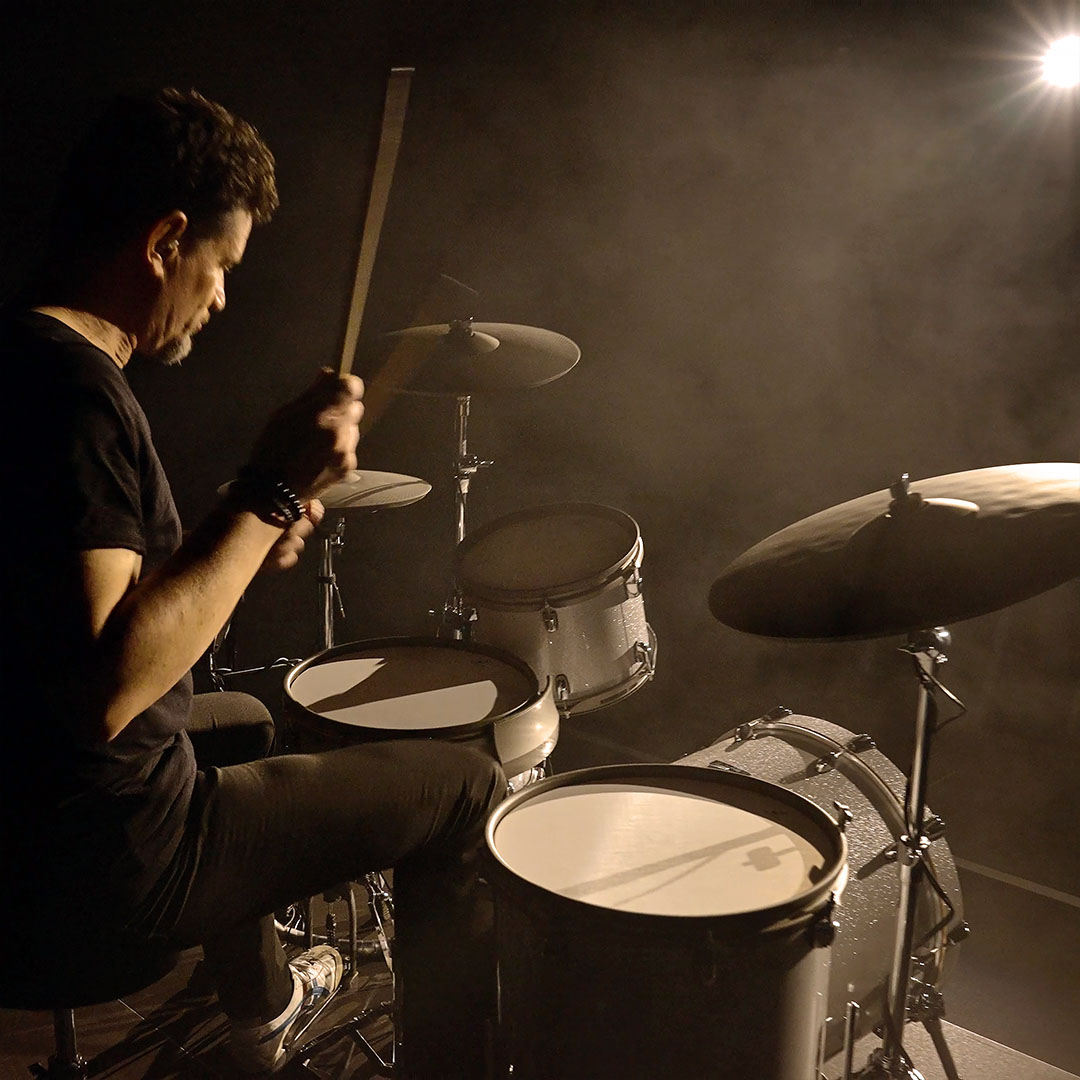

Authentic Presence

  • Proves your musicality to the audience on stage
  • Pure white sparkle finish that shines in the spotlight
  • Realistic swaying of full-sized cymbals that visualize its sound

Portrays Textures of Vintage Drums

  • Good old collector's drum sets are newly recorded for EFNOTE 7/7X
  • Contains attack and eKick elements that can be layered to enhance the sound
  • Dedicated remastered acoustic drum sounds

Expandability for Customized Setup

  • Basic setup for flexible expansion based on your music style
  • Visit the Customize page for customized setup examples

Drums & Cymbals

9-Sensor Snare Drum

  • 14 x 5.5", 10 lugs, birch wood shell, 2ply mesh drum head
  • Multi-sensor for hotspotless and high-resolution sounding
  • High head tension tuning available
  • Wide and adjustable side-rim

Independent Side-Rim

  • Easy, intuitive and reliable
  • No switch operation required
  • Elegant arc design

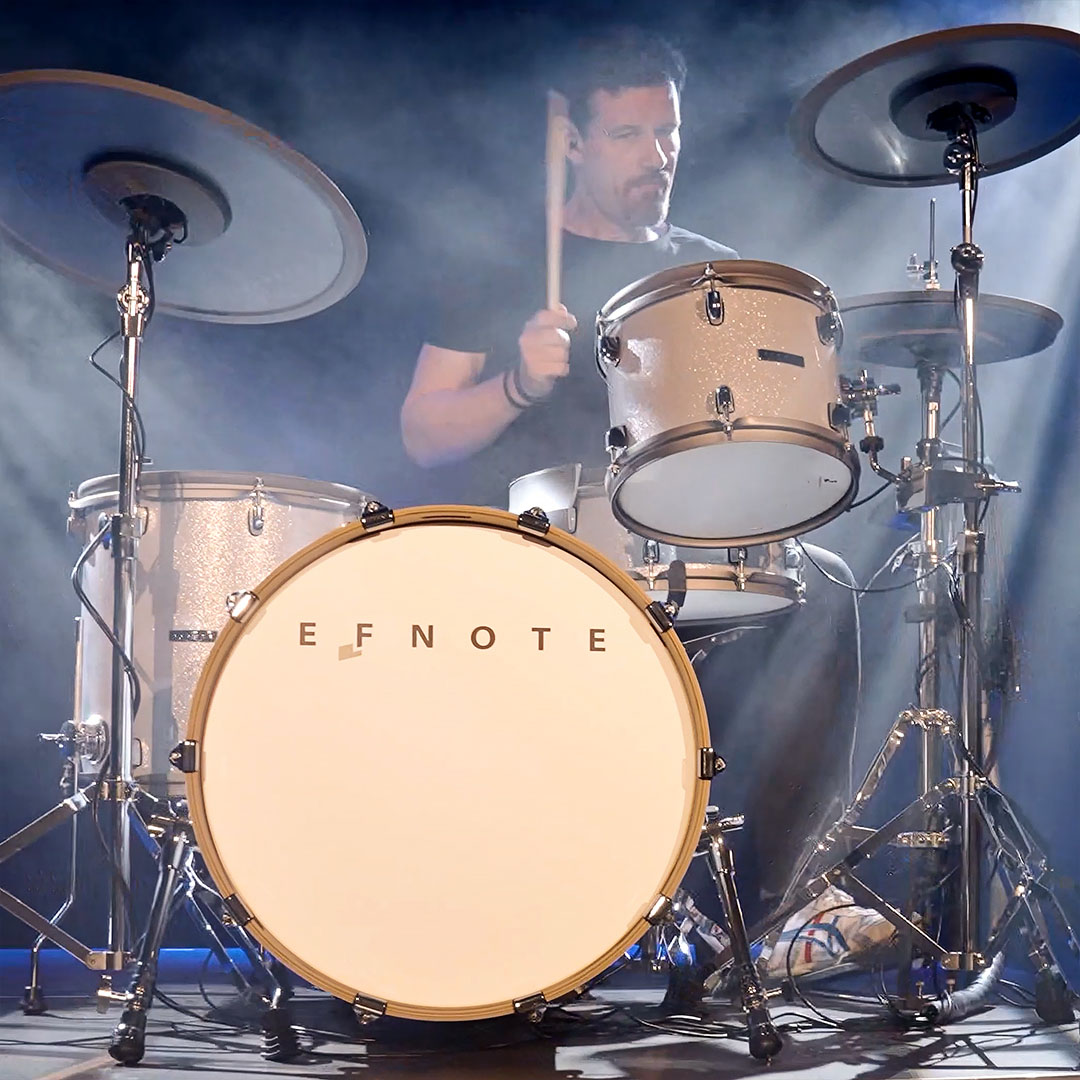

20" Kick, Unwavering Confidence

  • 20 x 15", 10 lugs, birch wood shell, 2ply mesh drum head
  • Props the whole set at the center of stage
  • Stable multi sensing for single/double beater(s)

15" Floor Tom with Realistic Touch

  • 15 x 15", 8 lugs, birch wood shell, 2ply mesh drum head
  • Multi-sensor for hotspotless and high-resolution sounding
  • Low-rebound 2ply mesh drum head
  • Low head tension tuning available

Finest Hi-Hat Cymbals

  • 14" top/bottom cymbals
  • World's first multi-optical sensing to capture the motions in 3D
  • Tru-Motion™ technology for expressiveness leap
  • 360° free-swinging top/bottom cymbal design

20" Ride Is Here!

  • The 20" diameter provides slow wobbling of edge and the quick response of bow/cup
  • Multi-sensored 360° play/choke area
  • 360° free-swinging design
  • Responsive thin edge
  • Hammered texture surface

Beautiful Cymbal Surface

  • Elegant warm-gray surface with fine engravings
  • Clean silicone rubber surface that is resistant to drumstick marks

Sound Module

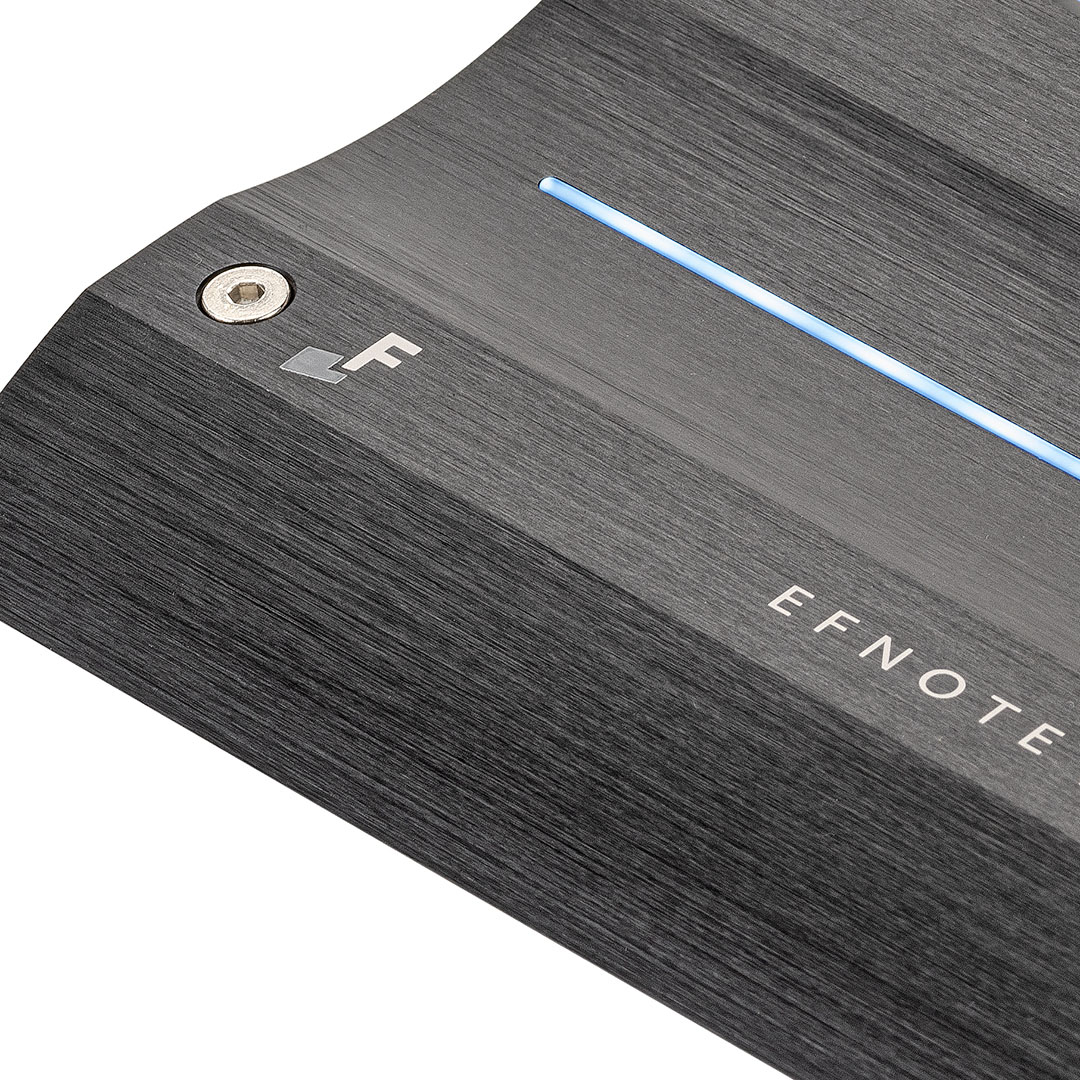

Ultra-Compact Sound Module

  • Ultra-small form factor with uncompromised features
  • Metal chassis and aluminum finish
  • High quality DAC and audio circuit
  • High power headphone amplifier
  • Touch screen intuitive user interface

ELISE™ Sensing Processor

  • Capturing drummer's intentions from each stroke
  • Low latency, wide dynamic-range, consistent and stable sensing
  • Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads

Full-Scale Acoustic Sound

  • Full stereo acoustic drum/cymbal samples recorded by EFNOTE
  • Tru-Aco™ sound technology provides real drum/cymbal sound behaviors
  • Raw sound without resynthesis

For Training

  • Multi-function metronome with beat LED indicator
  • Built-in metronome speaker for daily training without headphones
  • On-board drum recording function (15 tracks)
  • Stroke Analyzer
  • Rhythm Box feature provides over 90 basic drum beats

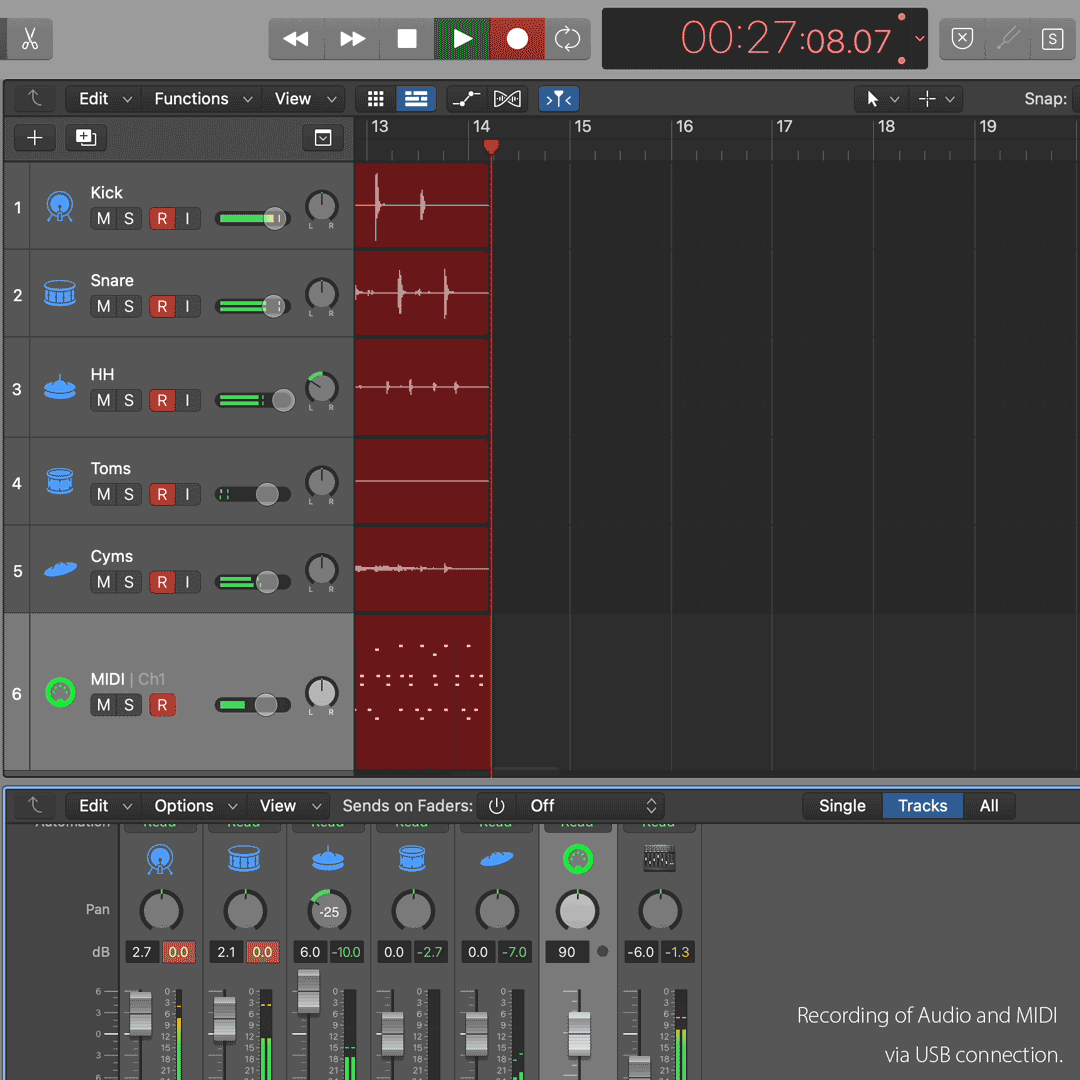

For Recording

  • USB 8-ch individual audio outputs with Mac / Windows (ASIO)
  • USB 2-ch audio inputs for playback
  • Analog 4-ch audio outputs
  • USB MIDI in/out with individual MIDI channels
  • MIDI output (5-pin DIN)

For Small Gigs

  • Setlist feature enables you to configure kit order with tempo for each song
  • Kick and Snare can be output individually with analog 4-ch outputs
  • Click and Audio-In can be assigned only for headphones
  • High-power headphones output
  • MIDI output (5-pin DIN)

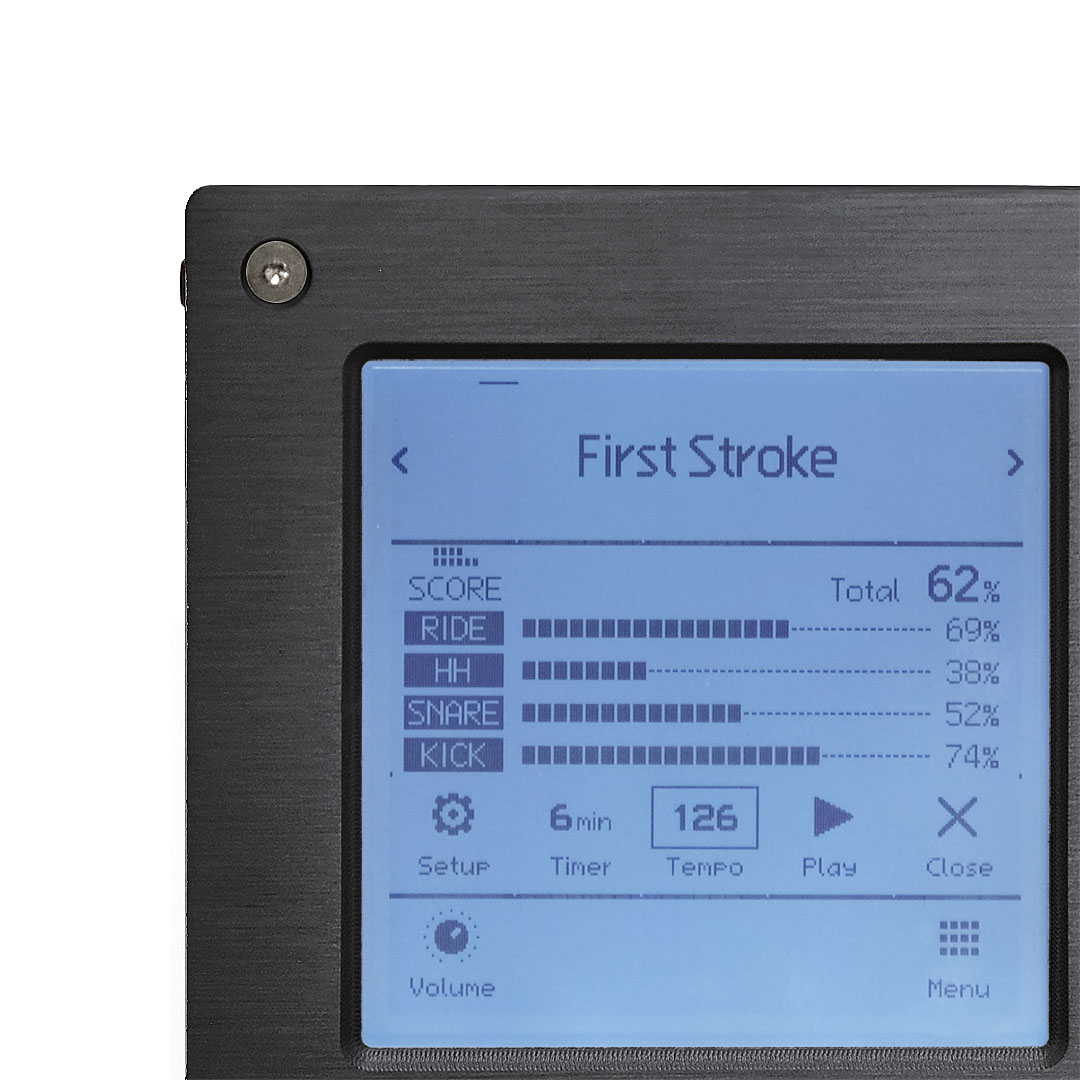

Stroke Analyzer

  • "Stroke Scope" displays your strike points on time-line
  • "Accuracy Score" estimates your strike accuracy

Sound Edit

  • Tuning, Muffling, 2-band EQs for each pad
  • Pad layer function can overlay two sounds
  • User Inst Library enables you to store 128 customized instruments
  • On-board reverb
  • Dedicated level control screen

Flexible Audio Routing

  • 10-ch output buses
  • Flexible output routing for each pad
  • Output assignable click
  • Output: 4-ch analog / 8-ch USB
  • Input: Analog / Bluetooth / 2-ch USB

Bluetooth®

  • Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone
  • Bluetooth MIDI
  • EFNOTE Tools App for control remotely

Various Optional Components

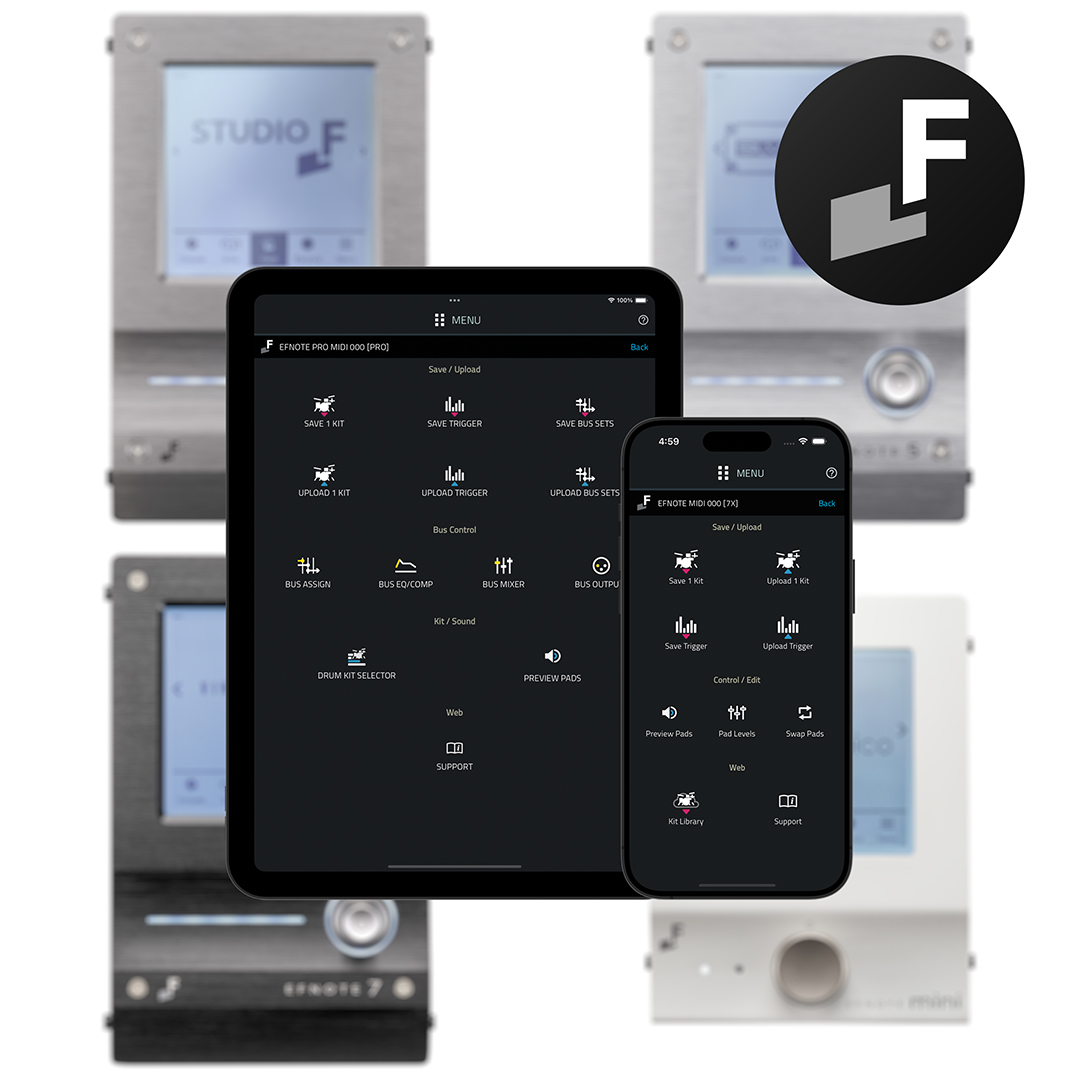

EFNOTE Tools App

EFNOTE Tools
- Carry Data with You

You can backup, restore, and share drum kit data and trigger settings with your smartphone.

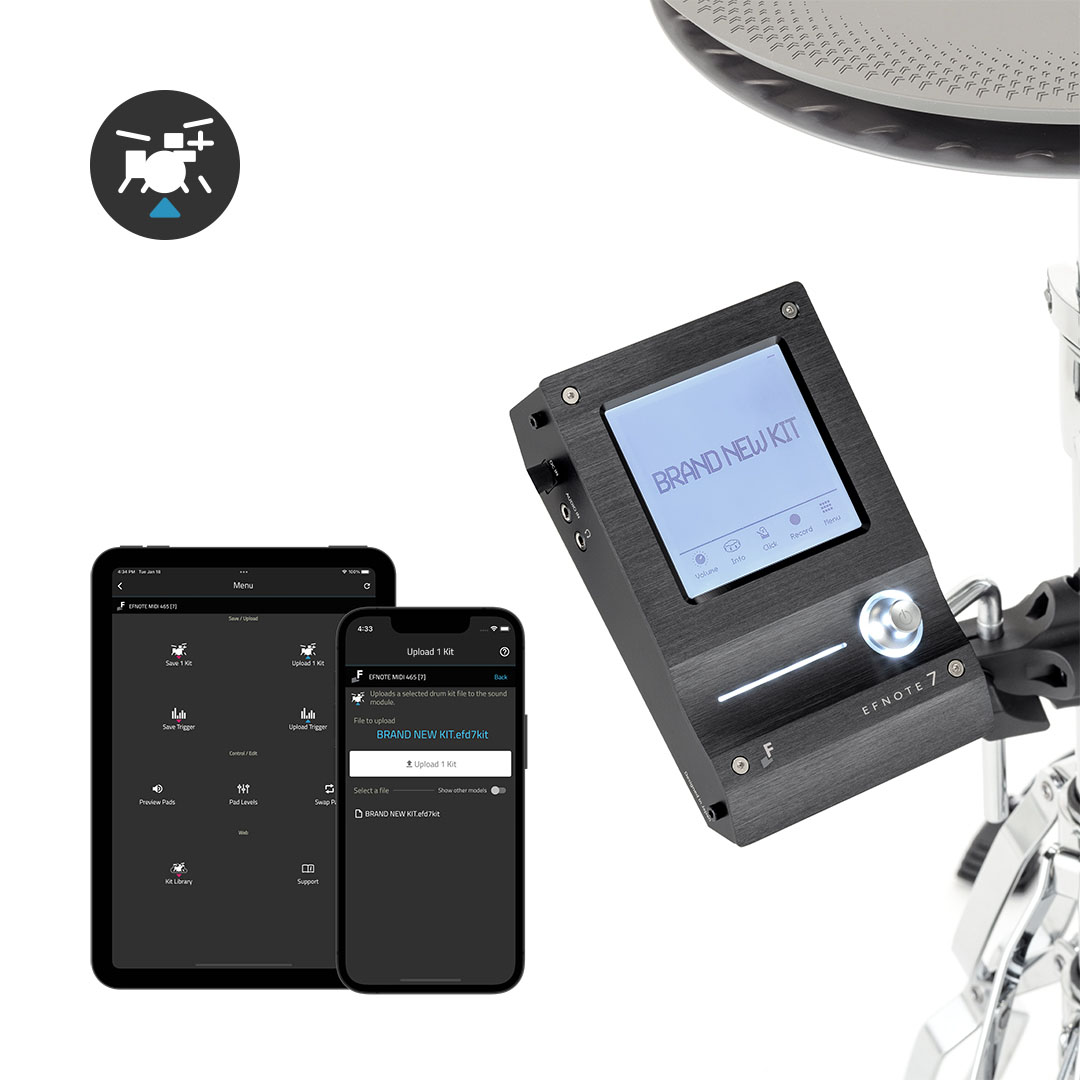

EFNOTE Tools
- Get New Drum Kits

Visit the official Kit Library to get the new drum kit data.

There you will surely find ideas that inspire your creativity.

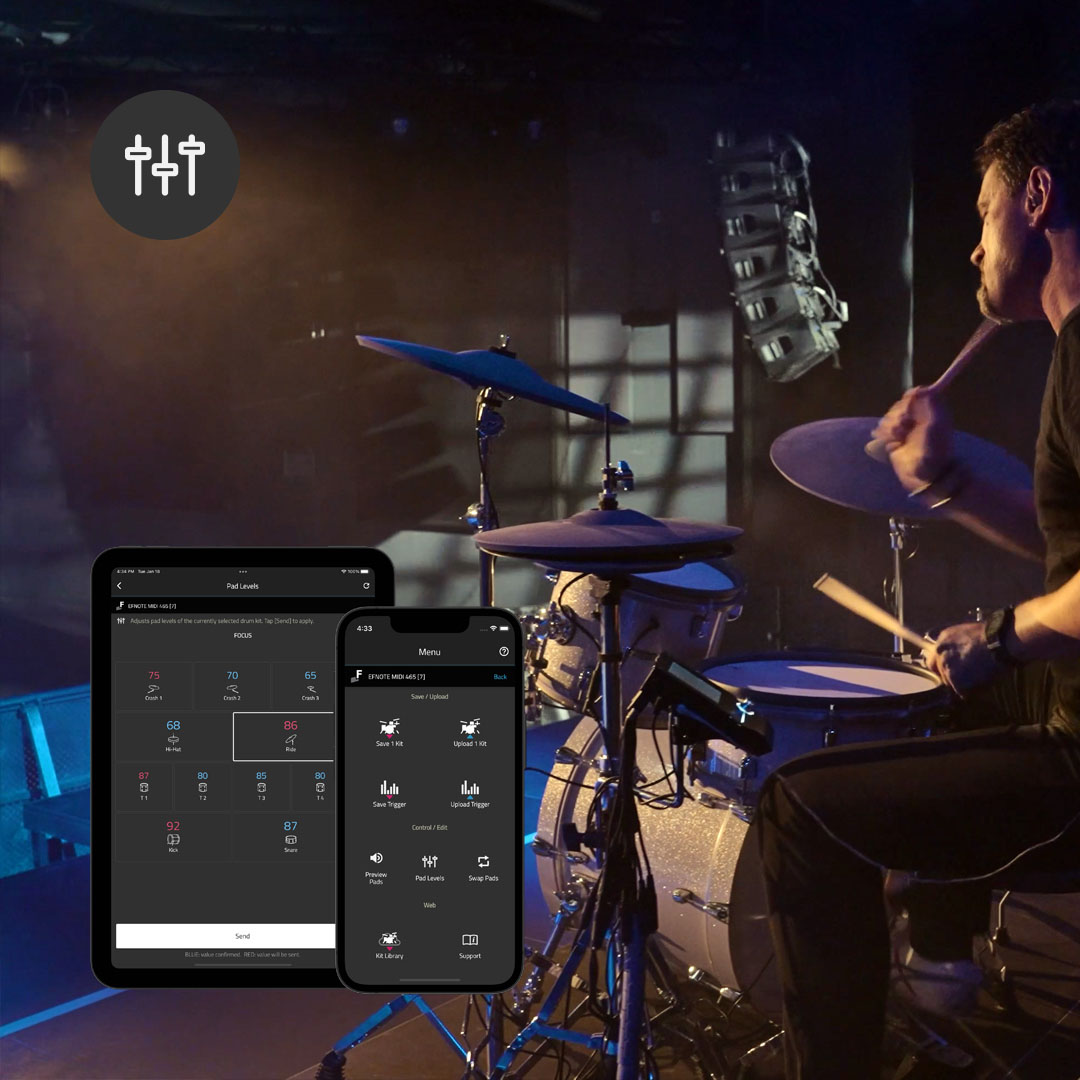

EFNOTE Tools
- Adjust Remotely

For small gigs, drummers often cannot rely on FOH engineers.

Now you can remotely adjust the each pad level while playing back your beat with the built-in recorder.

EFNOTE Tools
- Swap Sounds

The Swap feature makes it easy to swap each sound of toms or cymbals.

It helps you changing the set up and editing kits.

Gallery

Product images are for illustration purposes only, actual products may vary.

In some countries, the specifications and configuration shown may vary.

Items shown in the photos such as kick pedal, hi-hat stand, drum throne, sticks, headphones, smartphone and computer are not included.

Other models or customized setups are shown for some images.

Some technologies and designs are patented or under patent pending.

Company names, brand names, etc. appearing in photos are registered trademarks or trademarks of the respective companies.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc..

EFNOTE 7 Videos

EFNOTE 7 Preset Drum Kit Sound

  • The raw sound of EFNOTE 7 preset kits are recorded via USB (only the volume is adjusted)
  • Listening with headphones is recommended
  • Data format: .WAV file (48 kHz/24 bit)
Vintage POWER
Vintage Coated '70s
Birch Shells
METAL MASTER
Chameleon
SILVER FONIC
First Note
Great Strokes
FunQ
ROCKIN
Gentle Notes
Maple King
turquoise
Neo Classic
Light Bodies
SNARE OFF
LAST CALL
STUDIO F
Solid Attack
FOCUS

Reproducing all or any part of the contents is prohibited.

Available Trigger Inputs for Expansion

Customize Examples

Items required:

  • 1x Rack Tom 10": EFD-T1070-WS
  • 1x Tom Mount: EFD-TM5
  • Use the TOM 1 cable for the 10” tom, and the TOM 2 cable for the 11” tom.

Items required:

  • 1x Floor Tom 13": EFD-T1313-WS
  • Use the TOM 4 cable.

    Crash 1 Cup is not supported with this setup.

Items required:

  • 1x Splash Cymbal 8": EFD-C08
  • 1x Splash Cymbal Mount: EFD-SCM5
  • Use the CRASH 3 cable.

Items required:

  • 1x Standard Cymbal 18”: EFD-C18

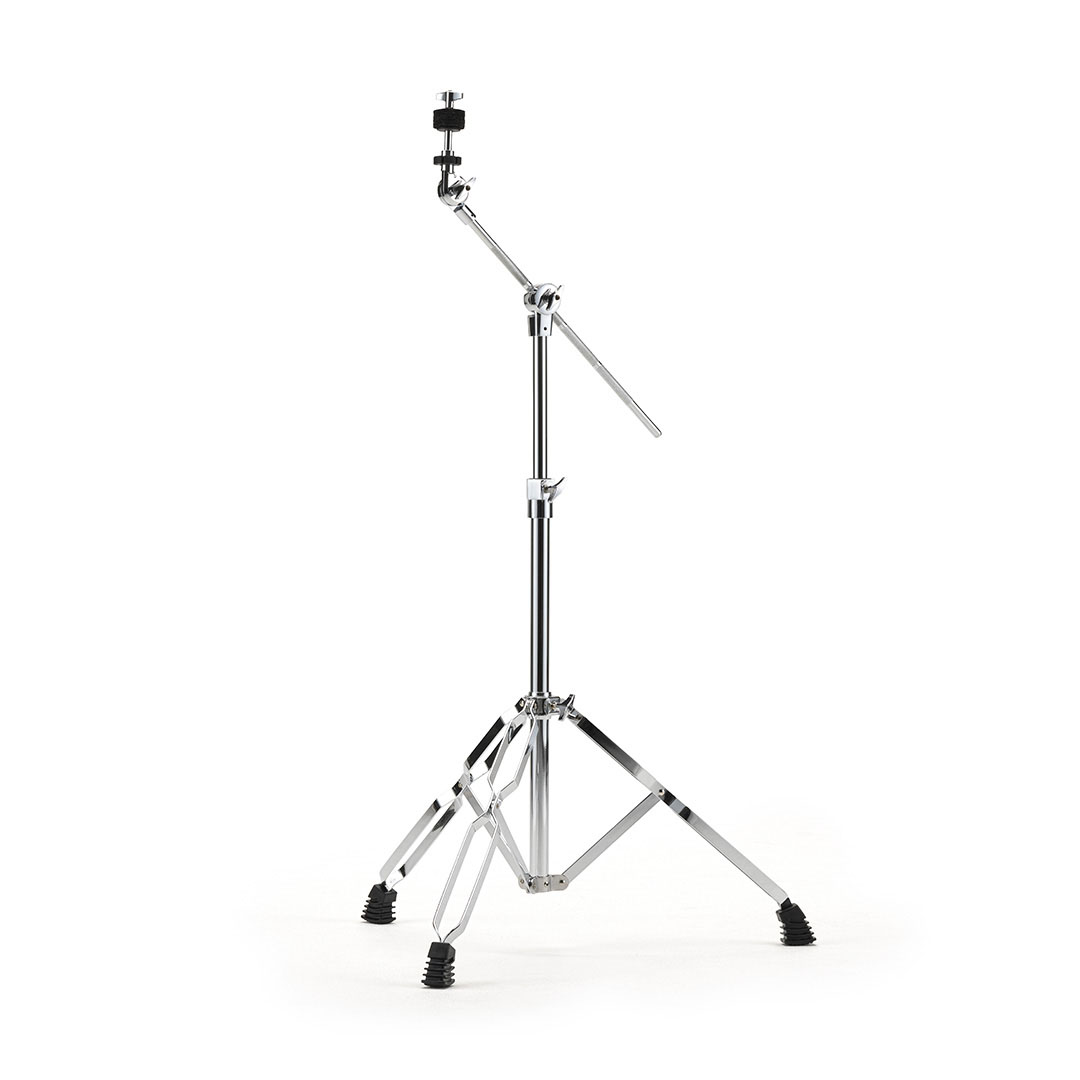

  • 1x Cymbal Stand: EFD-CS5
  • Use the CRASH 2 cable.

Items required:

  • 1x Standard Cymbal 18": EFD-C18
  • 1x Standard Cymbal 16": EFD-C16
  • 2x Cymbal Stand: EFD-CS5
  • Use the CRASH 2 cable for the 18" cymbal, the CRASH 3 cable for the 16" cymbal.

    Crash 2/3 Cups are not supported with this setup.

Items required:

  • 1x EFNOTE 7 Expansion Pack 1:
    EFD7-EXPCK1-WS
  • Use the TOM 1 cable for the 10” tom, and the TOM 2 cable for the 11” tom.

    Use the CRASH 2 cable for the 18" cymbal.

    Crash 2 Cup is not supported with this setup.

Items required:

  • 1x EFNOTE 7 Expansion Pack 1:
    EFD7-EXPCK1-WS
  • 1x Floor Tom 13": EFD-T1313-WS
  • 1x Splash Cymbal 8": EFD-C08
  • 1x Splash Cymbal Mount: EFD-SCM5
  • Use the TOM 1 cable for the 10” tom, and the TOM 2 cable for the 11” tom.

    Use the TOM 4 cable for the 13" floor tom.

    Use the CRASH 2 cable for the 18" cymbal, and the CRASH 3 cable for the splash cymbal.

    All Crash Cups are not supported with this setup.

Items required:

  • 1x EFNOTE 7/5 Expansion Pack 2:
    EFD7/5-EXPCK2-WS
  • Use the TOM 1 cable for the 8” tom, and the TOM 2 cable for the 11” tom.

    Use the CRASH 2 cable for the 17" FX cymbal, and the CRASH 3 cable for the splash cymbal.

    Crash 2 Cup is not supported with this setup.

Items required:

  • 1x EFNOTE 7/5 Expansion Pack 2:
    EFD7/5-EXPCK2-WS
  • 1x Rack Tom 10": EFD-T1070-WS
  • Use the TOM 1 cable for the 8” tom, the TOM 2 cable for the 10” tom, and the TOM 4 cable for the 11" tom.

    Use the CRASH 2 cable for the 17" FX cymbal, and the CRASH 3 cable for the splash cymbal.

    All Crash Cups are not supported with this setup.

Items required:

  • 1x EFNOTE 7/5 Expansion Pack 3:
    EFD7/5-EXPCK3-WS
  • Use the TOM 4 cable for the 13” floor tom.

    Use the CRASH 2 cable for the 18" cymbal, and the CRASH 3 cable for the China cymbal

    All Crash Cups are not supported with this setup.

Items required:

  • 1x EFNOTE 7/5 Expansion Pack 3:
    EFD7/5-EXPCK3-WS
  • 1x Effect Cymbal 17": EFD-C17FX
  • 1x Cymbal Stand: EFD-CS5
  • Use the TOM 4 cable for the 13" floor tom.

    Use the CRASH 2 cable for the 18" cymbal, and the CRASH 3 cable for the China cymbal.

    Use the TOM 2 cable for the 17" FX cymbal. (In this case, you need to change the instrument assigns for the TOM 2 input.)

    All Crash Cups are not supported with this setup.

Optional Hardware Set

HW Set for EFNOTE 7

EFD7-BOX3

Unless sold separately, Hardware Set is usually included in the EFNOTE 7 set.
Please contact your dealer for details.

Optional Expansion Packs

Expansion Pack 1

EFD7-EXPCK1-WS

Can be expanded with any one of Expansion Pack 1 to 3.

Expansion Pack 2

EFD7/5-EXPCK2-WS

Can be expanded with any one of Expansion Pack 1 to 3.

Expansion Pack 3

EFD7/5-EXPCK3-WS

Can be expanded with any one of Expansion Pack 1 to 3.

Optional Shells

Rack Tom 8"

EFD-T0865-WS

  • Size: 8 x 6.5"
  • Shell: Birch 6-ply
  • Finish: White Sparkle
  • Zone: Head / Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim (TRS Phones)
  • Features: Colored hoop rubber
  • Rod Mount (φ9.5 -- φ12.0 mm)

Rack Tom 10"

EFD-T1070-WS

  • Size: 10 x 7"
  • Shell: Birch 6-ply
  • Finish: White Sparkle
  • Zone: Head / Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim (TRS Phones)
  • Features: Colored hoop rubber
  • Rod Mount (φ9.5 -- φ12.0 mm)

Floor Tom 13"

EFD-T1313-WS

  • Size: 13 x 13"
  • Shell: Birch 6-ply
  • Finish: White Sparkle
  • Zone: Head / Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim (TRS Phones)
  • Features: Colored hoop rubber

Floor Tom 15"

EFD-T1515-WS

  • Size: 15 x 15"
  • Shell: Birch 6-ply
  • Finish: White Sparkle
  • Zone: Head / Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim (TRS Phones)
  • Features: Colored hoop rubber

Optional Cymbals

Ride Cymbal 20"

EFD-C20

  • Size: 20" / 51 cm
  • Color: Warm gray
  • Use: Ride cymbal
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Hammered texture surface with fine engravings

Standard Cymbal 18" Dark

EFD-C18-D

  • Size: 18" / 45 cm
  • Color: Dark gray
  • Use: Ride cymbal / Crash-Ride cymbal
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface

Standard Cymbal 18"

EFD-C18

  • Size: 18" / 45 cm
  • Color: Warm gray
  • Use: Ride cymbal / Crash-Ride cymbal
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface

Standard Cymbal 16"

EFD-C16

  • Size: 16" / 40 cm
  • Color: Warm gray
  • Use: Crash cymbal
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface

Standard Cymbal 14"

EFD-C14

  • Size: 14" / 35 cm
  • Color: Warm gray
  • Use: Crash cymbal / Mini-China cymbal
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface

Standard Cymbal 12"

EFD-C12

  • Size: 12" / 30 cm
  • Color: Warm gray
  • Use: Splash cymbal / Mini-China cymbal
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface

China Cymbal 18"

EFD-C18CH

  • Size: 18" / 45 cm
  • Color: Dark gray
  • Use: China cymbal
  • Zone: Bow / Edge
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge (TRS Phones)
  • Features: STAK™, Weight simulation, Hammered texture surface with fine engravings

Effect Cymbal 17"

EFD-C17FX

  • Size: 17" / 43 cm
  • Color: Dark gray
  • Use: Crash cymbal / Effect cymbal
  • Zone: Bow / Edge
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge (TRS Phones)
  • Features: STAK™, Weight simulation, Hammered texture surface with fine engravings

Splash Cymbal 8"

EFD-C08

  • Size: 8" / 20 cm
  • Color: Warm gray
  • Use: Splash cymbal
  • Zone: Bow / Edge
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge (TRS Phones)
  • Features: Weight simulation, Fine engraved surface

Optional Hardware

Cymbal Stand

EFD-CS5

  • Boom cymbal arm
  • Geared tilter
  • Cable holder
  • Middle tube diameter: φ19.1 mm (3/4")
  • Boom length: 400 mm
  • Height adjustment range: 800 -- 1,500 mm

Tom Mount

EFD-TM5

  • Ball angle adjustment
  • Knurled carbon steel rod
  • L-rod diameter: φ10.0 mm (3/8")
  • Installable pipe diameter: φ19.1 mm (3/4") -- φ31.8 mm (5/4")

Splash Cymbal Mount

EFD-SCM5

  • 1x Z-rod short
  • 1x Z-rod long
  • Installable pipe diameter: φ19.1 mm (3/4") -- φ28.6 mm (9/8")

Product images are for illustration purposes only, actual products may vary.

In some countries, the specifications and configuration shown may vary.

Items shown in the photos such as kick pedal, hi-hat stand, drum throne, sticks, headphones, smartphone and computer are not included.

Other models or customized setups are shown for some images.

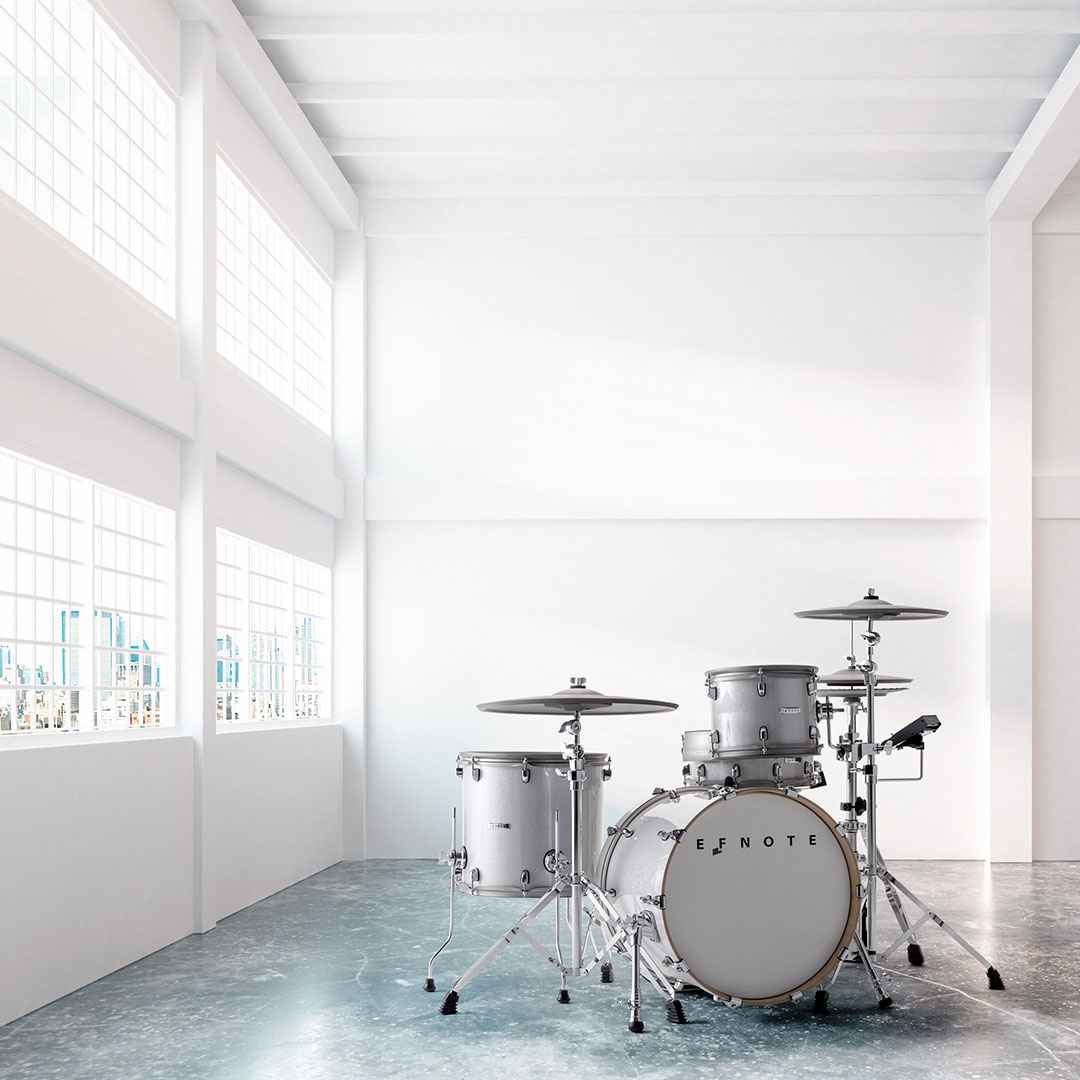

Specifications

Drum / Cymbal Pads

Kick EFD-K2015
  • Size: 20 x 15"
  • Finish: White sparkle
  • Zone: Head
  • Sensor: Multi
  • Head: Double-layered mesh with beater patch
  • Connector: Head (TRS Phones)
  • Features: Wood hoop
Snare EFD-S1455
  • Size: 14 x 5.5"
  • Finish: White sparkle
  • Zone: Head / Rim / Side-Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim, Side-Rim (2x TRS Phones)
  • Features: Birch shell, Colored hoop rubber, Side-Rim
Tom EFD-T1180
  • Size: 11 x 8"
  • Finish: White sparkle
  • Zone: Head / Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim (TRS Phones)
  • Features: Birch shell, Colored hoop rubber
Floor Tom EFD-T1515
  • Size: 15 x 15"
  • Finish: White sparkle
  • Zone: Head / Rim
  • Sensor: Multi
  • Head: Double-layered mesh
  • Connector: Head/Rim (TRS Phones)
  • Features: Birch shell, Colored hoop rubber
Hi-Hat EFD-H14
  • Size: 14" (Top/Bottom)
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke) / Optical
  • Connector: 6-pin
  • Features: Multi-optical sensor, Tru-motion™ hi-hat, Weight simulation, Fine engraved surface
  • General hi-hat stands compatible with φ12.7 mm (1/2") hole cymbal can be used.

    EFNOTE 7 sound module does not support hi-hat cup zone.

Crash EFD-C16
  • Size: 16"
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Fine engraved surface
Ride EFD-C20
  • Size: 20"
  • Color: Warm gray
  • Zone: Bow / Edge / Cup
  • Sensor: Multi (360° flat sensing + choke)
  • Connector: Bow/Edge, Cup (2x TRS Phones)
  • Features: Weight simulation, Hammered texture surface with fine engravings

Sound Module: EFD-7

Trigger Interface
  • 3-Zone: Snare, Crash 1/2*, Ride
  • 2-Zone: Tom 1/2/3/4, HH, Crash 3
  • 1-Zone: Kick
  • Crash 1/2 support 3-zone with using Tom 4/Crash 3 cables.

Audio / MIDI Interface
  • Line (1/2) Output: 2x TS Phone (+4dBu, Unbalanced)
  • Phones (3/4) Output: Stereo Mini-Phone (320 mW + 320 mW @32Ω)
  • Audio Input: Stereo Mini-Phone (+2dBu Max)

  • USB: Micro-B Type USB 2.0 Hi-Speed
    Audio: 8-ch Out (48kHz/24bit) / 2-ch In (48kHz/16bit), Mac/Windows ASIO
    MIDI: In/Out
  • Bluetooth Audio Input
  • Bluetooth MIDI In/Out
  • MIDI Out: 5-pin DIN
Drum Kits / Instruments
  • Preset Drum Kits: 20 (Editable)
  • User Drum Kits: 80
  • Instruments: Acoustic Drums/Cymbals (Stereo), Percussion (Stereo), Attack Elements
  • User Inst Library: 128 (Can be stored customized instruments)
Edit Parameters
  • Level, Pan, Tuning, Muffling (for each pad)
  • 2-Band EQ (for each pad)
  • Ambience Effect (8 types)
  • Pad Layer
Dimensions
  • 106 (W) x 172 (D) x 47 (H) mm
  • 700 g

Excluding protrusions

Power
  • DC 12 V, 500 mA (Nominal) / 800 mA (Max)

Hardware

Sound Module Arm
  • 1x Sound module arm
  • 1x Smartphone tray
Snare Drum Stand
(Optional)
EFD-SS5
  • For 12" to 14" diameter snare drums
  • Geared basket tilter
  • Double braced legs
  • Tube diameter: φ19.1 mm (3/4")
  • Height adjustment range: 500 -- 650 mm
Cymbal Stand
(Optional)
EFD-CS5
  • Boom cymbal arm
  • Geared tilter
  • Cable holder
  • Middle tube diameter: φ19.1 mm (3/4")
  • Boom length: 400 mm
  • Height adjustment range: 800 -- 1,500 mm
Tom Mount
(Optional)
EFD-TM5
  • Ball angle adjustment
  • Knurled carbon steel rod
  • L-rod diameter: φ10.0 mm (3/8")
  • Installable pipe diameter: φ19.1 mm (3/4") -- φ31.8 mm (5/4")

Drum Kit Placement

Placement Size
  • Approx. 145 (W) x 100 (D) cm
  • Approx. 4.8 (W) x 3.3 (D) feet

Without drum throne

Package

Accessories
  • Brake-out cable: EFD-MULTI-A5
  • Brake-out cable: EFD-MULTI-B
  • 5x Trigger cable 3.0 m: EFD-TRS-LL3
  • Cable ties
  • Quickstart guide

Snare drum stand, cymbal stands and tom mount are optional.

Kick pedal, hi-hat stand and drum throne are sold separately.

Specification and design are subject to change without prior notice.

Some of technologies and designs are under patent pending.

USB Compatibility

Downloads

Before downloading the following items, please carefully read the Software License Agreement.

Software License Agreement

Manuals (PDF)

Quickstart Guide
Reference Guide
Sound List

Drivers / Firmware / Apps

Consumable Parts

See the Consumable Parts page.

Tutorials

Get Support by Your Local Distributor
